XRS

Soft X-Ray System

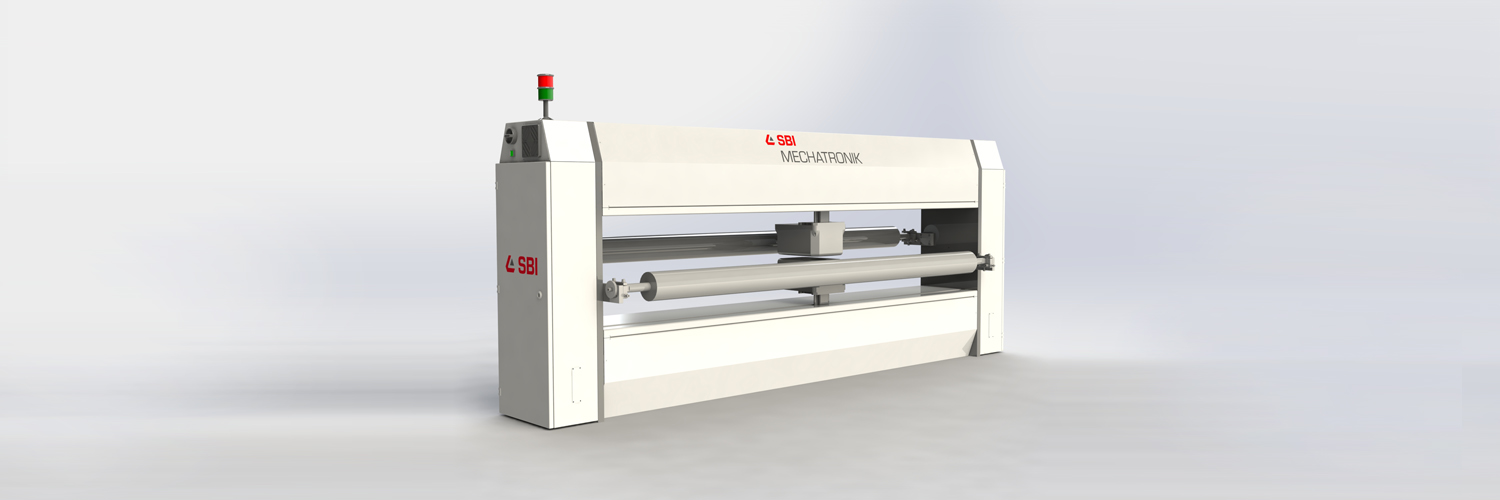

XRS is low energy x-ray gauging system (< 5kVA) that measures thickness and basis weight of thin films such as cast films, non-woven and other flexible packaging.

Due to low output voltage, XRS does not require licensing in most countries leading to easy installation and maintenance.

Applications

Cast Film
BIAX
Non-Woven
Calendaring
Plastic Film and Sheet
Coating and Lamination

← 8 m →

XRS thickness gauges are available in widths of up to 8 m

≤ 0,2 μm

Ultra-precise thickness measuring with an accuracy of ≤ 0,2 µm

Measuring Principle

XRS is a non-contact measurement system. The x-ray tube emits energy photons. Measurement is based on the absorption of x-ray particles from the source to determine the thickness and basis weight.

This results in greater control of the process whether it’s film extrusion, sheet extrusion and extrusion coating.

Technical Specifications

Technical Specification XRS
Measuring System X-Ray
Max. Tube Voltage < 5 kV
Max. measuring thickness 700 μm *
Measuring gap 10 – 20 mm
Measuring spot diameter 15 mm
Repeatability ± 0,2 % not better than ± 0,2 μm
Measurement Speed 10- 200 mm/s adjustable

* value is material dependent

Please download the PDF data sheet for detailed technical specifications!
