Thickness Measuring Devices

SBI extrusion technology offers products for quality management and quality consistency in film and sheet extrusion:

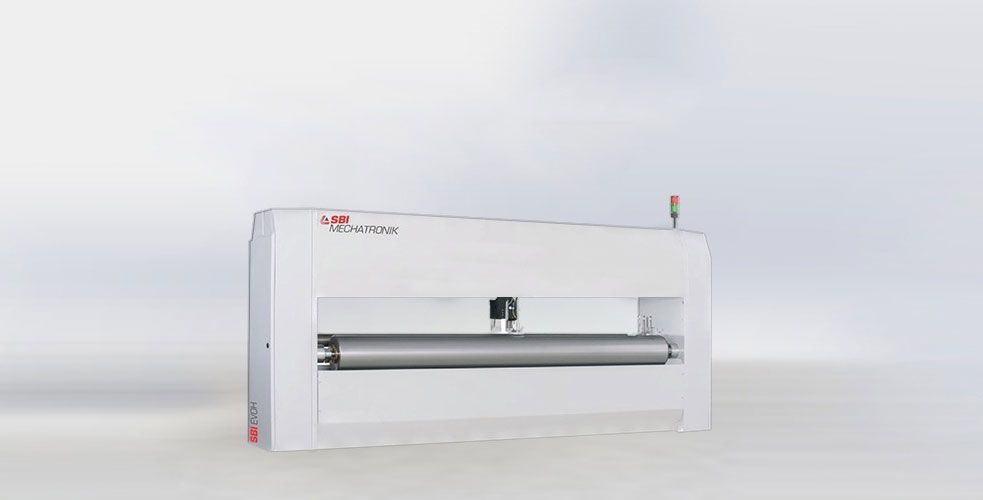

KAPA

Kapa features a dual sensor system for non-contact measuring of films and sheets up to 6 mm thick – with extreme accuracy.
Kapa is a non–nuclear technology that does not require licensing or protection guards.

KAPA_SBI_RENDER_31AUG21_Category

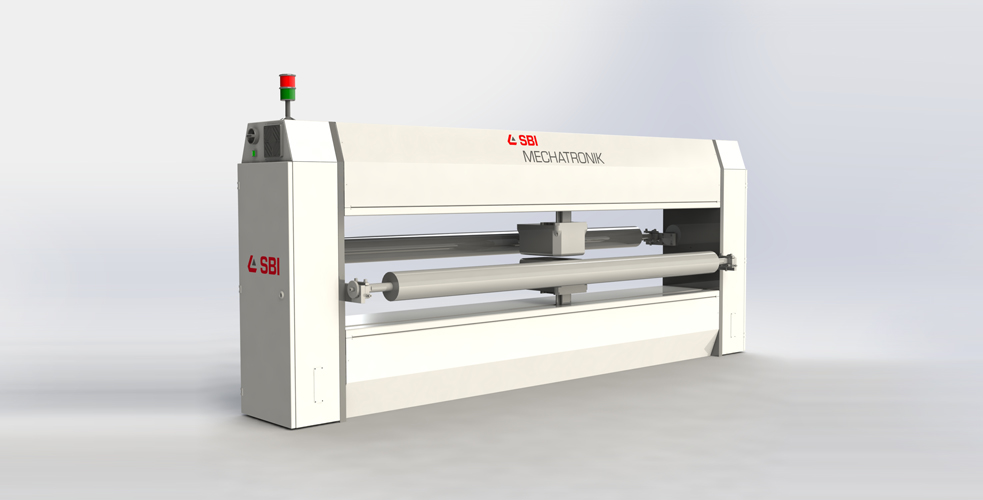

XRS

XRS is low energy x-ray gauging system (>5kVA) that measures thickness and basis weight of thin films such as cast films, non-woven and other flexible packaging.
Due to low output voltage, XRS does not require licensing in most countries leading to easy installation and maintenance.

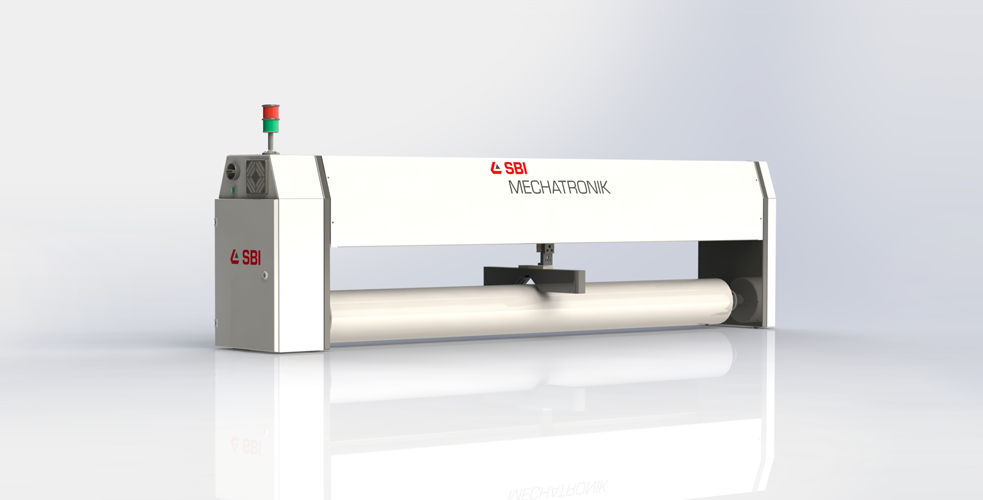

SHADOW

SHADOW is a readily used direct measuring system for the systems in which films up to 3,5mm are produced.
SHADOW works on the principle of laser occlusion over a measuring roller. It is a direct measuring system, and it is, therefore, independent of the properties of the film.

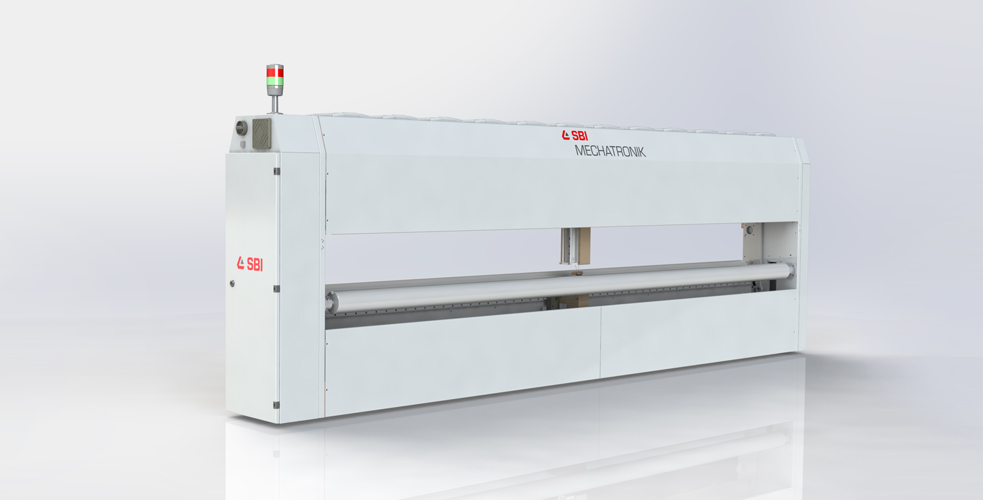

STG Thickness Gauge

STG was developed for thick rigid panels upto 40 mm. Two laser distance sensors scan the distance to the surface above and below a plate that runs through an O-frame. This directly determines the thickness of the plate.

STG is a non–nuclear technology that does not require licensing or protection guards.
