KAPA

Precise thickness measurement device for films and sheets

KAPA features a dual sensor system for non-contact measuring of films and sheets up to 6 mm thick – with extreme accuracy.

KAPA is a non–nuclear technology that does not require licensing or protection guards.

Applications
Measuring Principle
Specifications

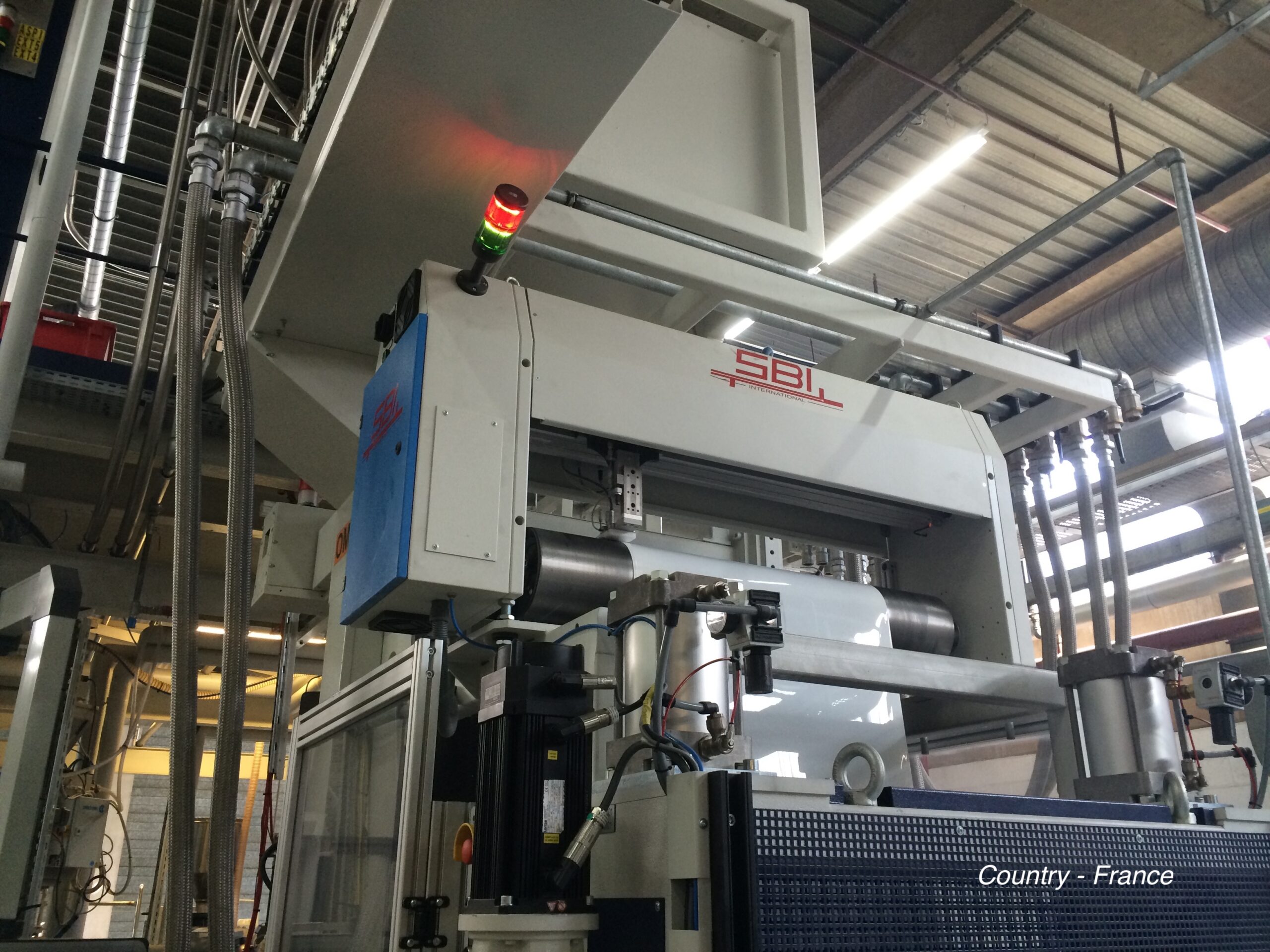

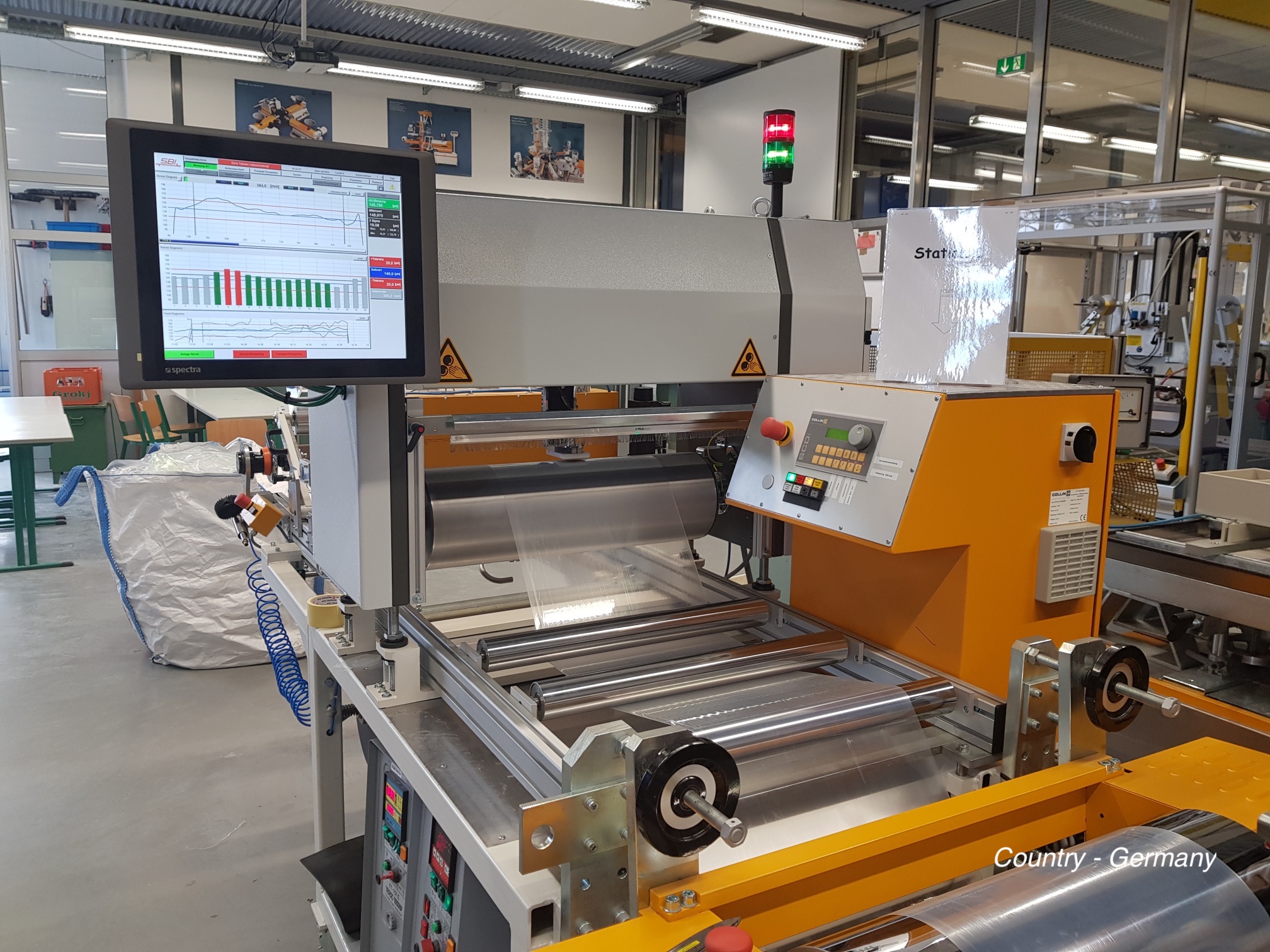

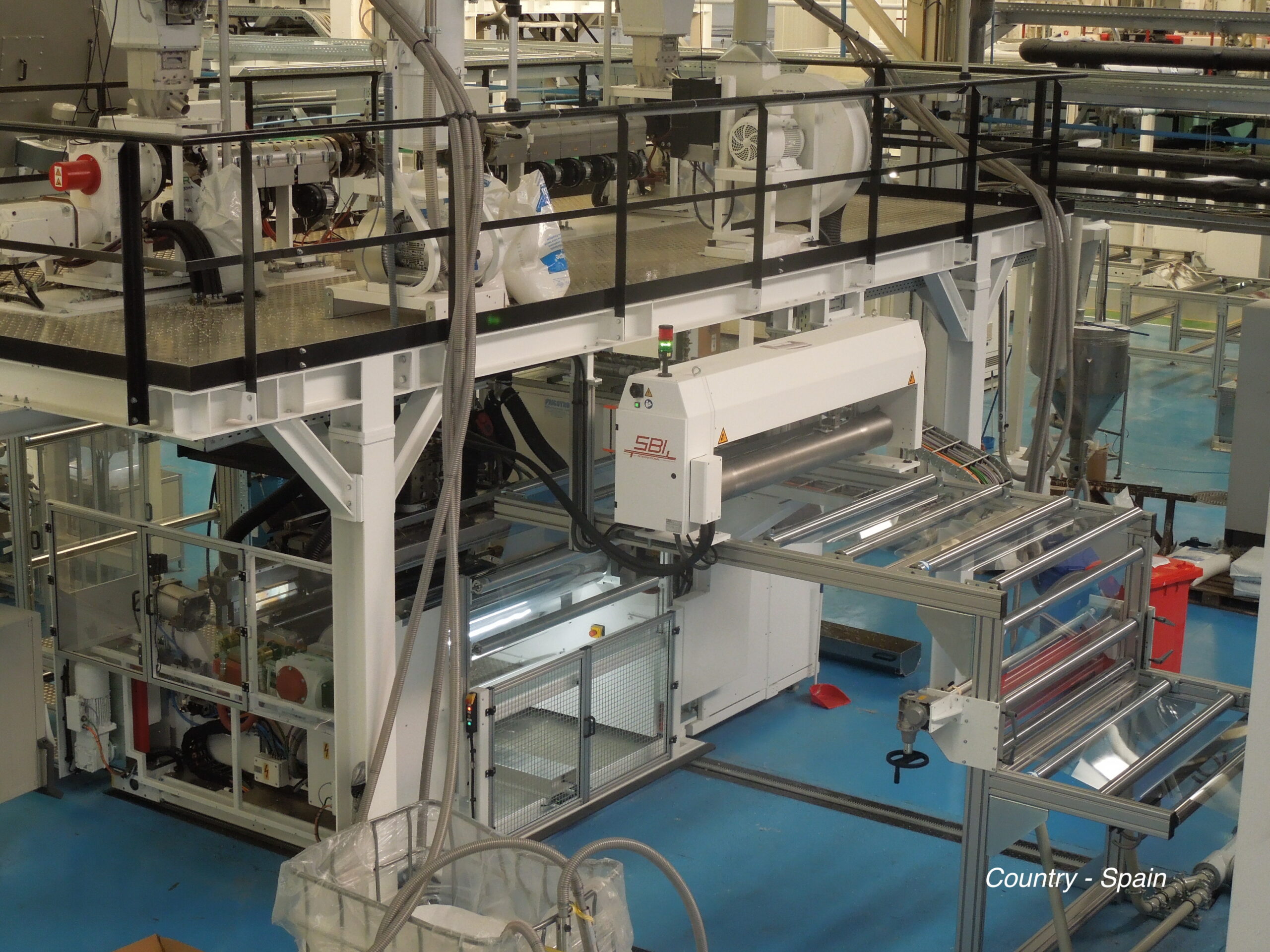

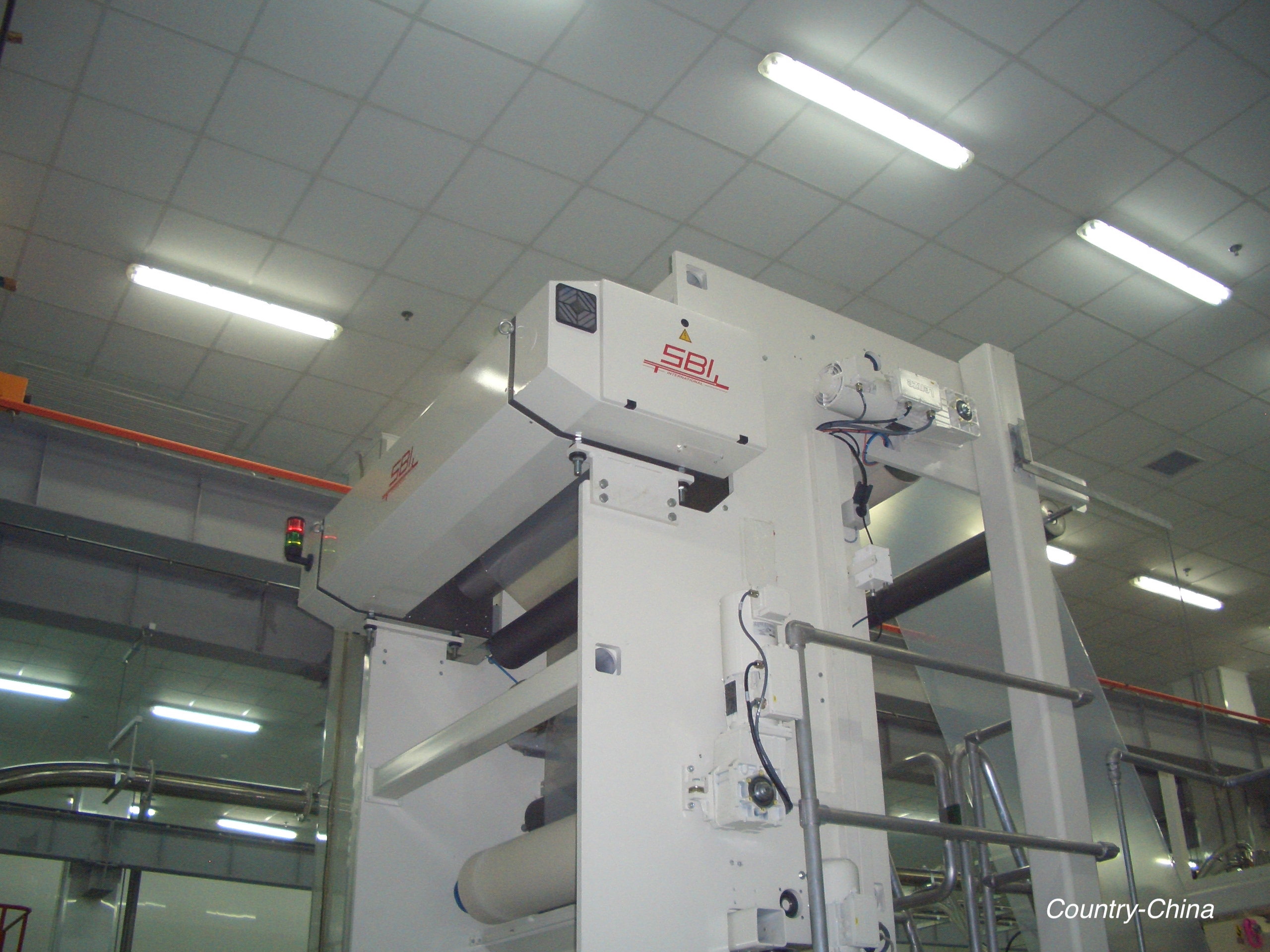

KApa in Action

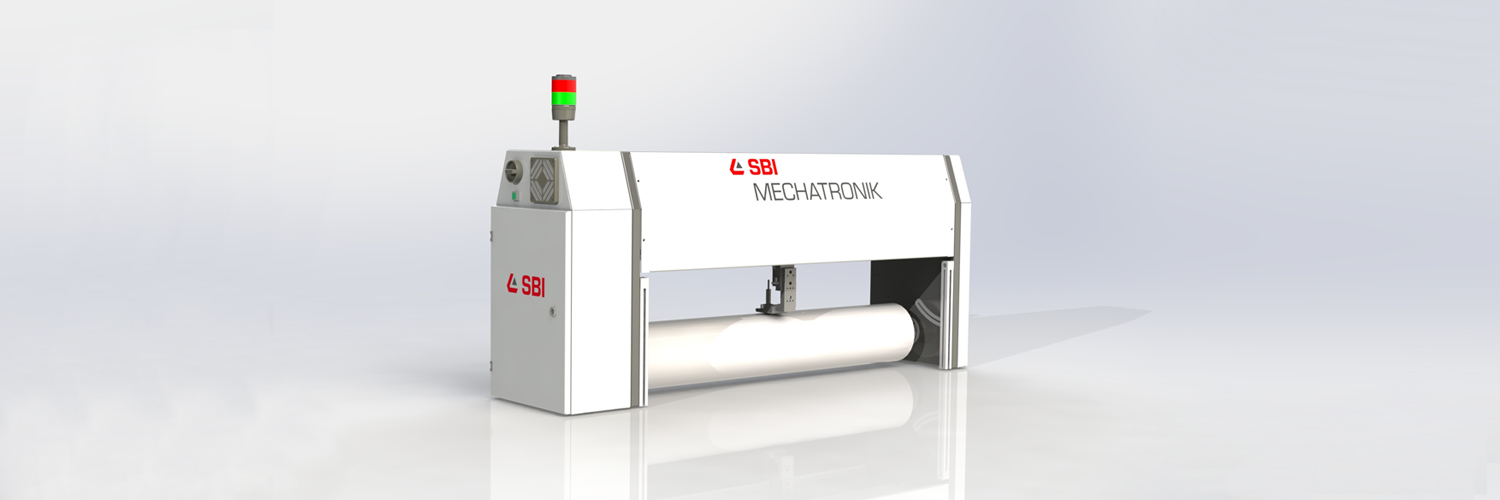

KAPA_SBI_RENDER_31AUG21_Product

Applications

Plastic films with precise thickness

Kapa controls thickness in films and sheets extrusion applications with narrow thickness tolerances –  for high quality production where every batch needs to be perfect.

Applications Include: Extruded Mono and Multilayer Plastic Film and Sheet, Thermoforming Sheet (PP, PE, PET, PS, ABS, PVC etc) , Land Fill Liners etc…



Two thickness ranges are available:

  • Kapa I – for sheets up to 3 mm thickness.
  • Kapa II – for sheets up to 6 mm thickness.

KAPA controls thickness in films and sheets extrusion applications with narrow thickness tolerances –  for high quality production where every batch needs to be perfect.

Applications Include: Extruded Mono and Multilayer Plastic Film and Sheet, Thermoforming Sheet (PP, PE, PET, PS, ABS, PVC etc) , Land Fill Liners etc…

Two thickness ranges are available:

  • KAPA I – for sheets up to 3 mm thickness.
  • KAPA II – for sheets up to 6 mm thickness.
carrot-lowres
image 1
shutterstock_147536093
shutterstock_216638494
shutterstock_586064846

← 500 mm to 8 meter →

KAPA thickness gauges are available in widths of 500 mm to 8 meter

≤ 0,1 μm

Ultra-precise thickness measuring with an accuracy of ≤ 0,1 µm

≤ 3 mm / ≤ 6 mm

KAPA I and II series are suitable for material thickness of up to 3 mm / 6 mm respectively

Measuring Principle

Capacitive / Eddy current

KAPA uses a non-contact, indirect measuring method with a dual sensor configuration and a measuring roller. This extremely robust sensor combination in one housing features capacitive and eddy current sensors.

First, the capacitance between sensor and measuring roller is measured. This is automatically corrected by the distance measurement of the eddy current sensor. From this, the thickness is calculated in comparison with a calibrated value.

Technical Specifications

KAPA I
KAPA II

Measuring system

capacitive / eddy current

Max. measuring thickness

3 mm

6 mm

Measuring gap

4,5 mm

9,5 mm

Diameter of the sensor

30mm

45mm

Measuring Spot diameter

12mm

15mm

Sensor resolution

0,1 μm

0,3 μm

Repeatability

≤ ± 0,5 μm

≤ ± 1 μm

Measuring Speed

10-300 mm/s adjustable

Movement speed

10 – 500 mm/s  adjustable

Calibration

necessary for each material

Diameter of reference roller

200 mm

Please download the PDF data sheet for detailed technical specifications!
